ROLE OF ECG IN DIFFERENTIAL DIAGNOSIS OF ANDERSON–FABRY DISEASE WITH HCM
_430x268.jpg)

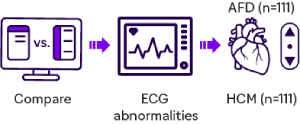

Study objective and method
%20(1).png)
%20(1).png)
Determine independent ECG predictors of AFD
%20(1).png)
Validate an ECG scoring system for differential diagnosis of AFD
Results
.png)
Anderson–Fabry ECG score
Score calculation | PR interval | <120 ms | 1 |
| 120- 199 ms | 0 | ||
| ≥200 ms | 2 | ||
| QRS duration | <100 ms | 0 | |
| 100–119 ms | 1 | ||
| 120–139 ms | 2 | ||
| ≥140 ms | 3 | ||
| RBBB (complete and incomplete) | Yes | 2 | |
| No | 0 | ||
| R in aVL ≥11 mV | Yes | 1 | |
| No | 0 | ||
| Inferior ST-segment depression | Yes | 3 | |
|
No | 0 |

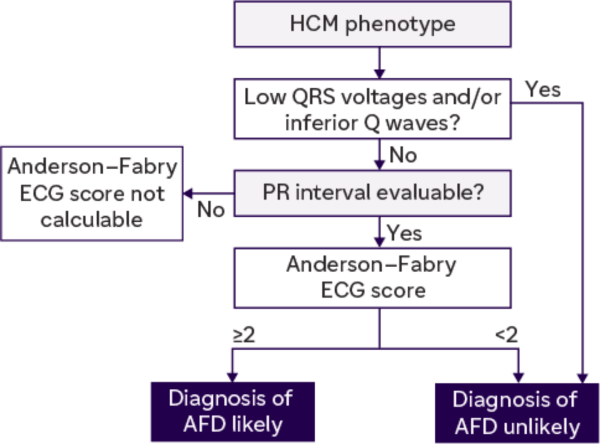

Algorithm for step-by–step analysis of the ECG for AFD
.png)
Conclusion

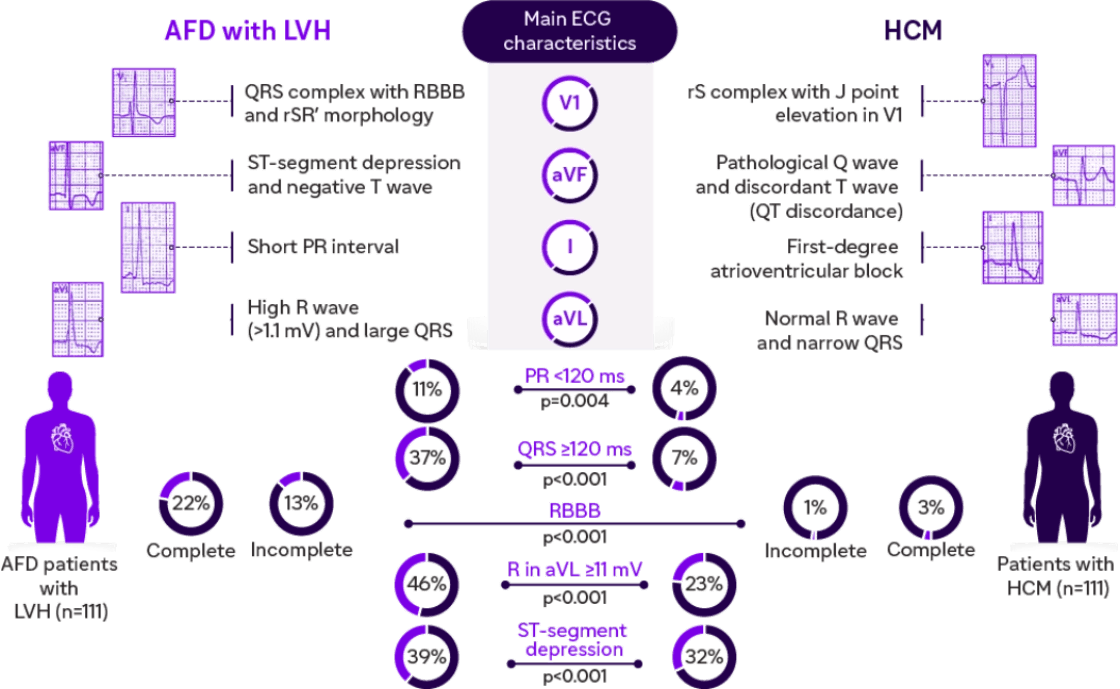

Independent predictors of AFD diagnosis
.png)
Short PR interval
%20(1).png)
Prolonged QRS duration
.png)
RBBB
%20(1).png)
R in aVL ≥1.1 mV
%20(1).png)
Inferior ST-segment depression
.png)
A stepwise ECG scoring system
.png)
Good
diagnostic performance
.png)
Discriminates unexplained LVH
.png)
Providing clinical and therapeutic implications
AFD: Anderson–Fabry disease; aVF: Augmented vector foot; aVL: Augmented vector left; ECG: Electrocardiogram; HCM: Hypertrophic cardiomyopathy; LVH: Left ventricular hypertrophy; MS: Millisecond; mV: Millivolt; RBBB: Right bundle branch block.
